Shot Blasting Machine

Large shot blasting, high cleaning efficiency, large effective space of the chamber, compact structure, and no pit form, no special requirements for the shape and structure of the cleaned workpiece
Leave Message Inquiry Online

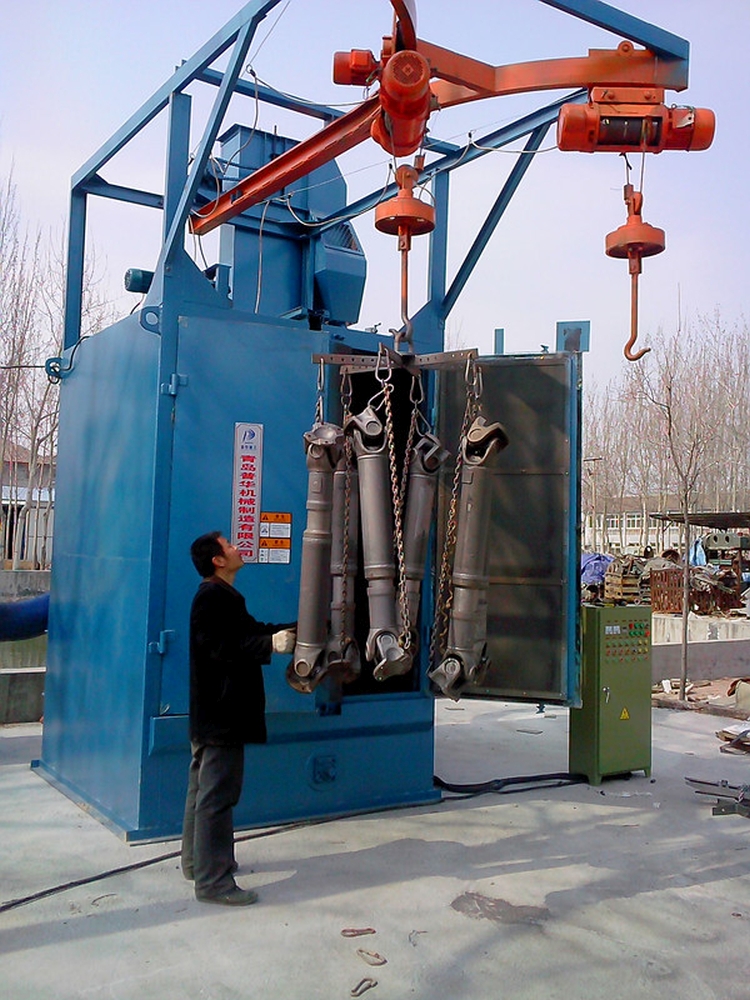

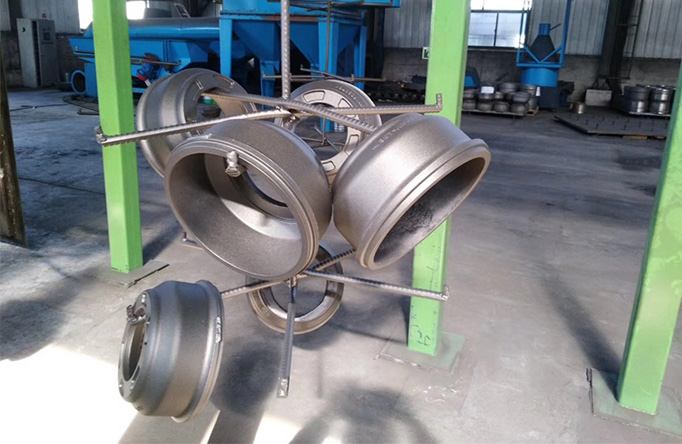

1.Q3 Hook Type Shot Blasting Machine

Q3 Hook Type Shot Blasting Machine



Large shot blasting, high cleaning efficiency, large effective space of the chamber, compact structure, and no pit form, no special requirements for the shape and structure of the cleaned workpiece

This series of products are widely used in machinery manufacturing and foundry industry.

Parameter
No. Model Q376 Q378 Q3710 Q3720 Q3750 Q3780 Q37100 Q37160 No.
1 Workpiece Size mm Φ600*

1100

 Φ800*

1500

 Φ900*

1600

 Φ1400*

2300

 Φ1800*

2500

 Φ2000*

3000

 Φ2500*

3500

 Φ2600*

4000
2 Single Hook Lifting Weight kg 600 1000 1000 2000 5000 8000 10000 16000
3 Shot Blast kg/m 2*120 2*200 2*250 3*250 4*250 4*250 5*250 6*250
4 Lift Amount t/h 15 22 30 45 60 60 75 90
5 Separation

Amount

 t/h 15 22 30 45 60 60 75 90
6 Dust Removal volume M3/h 5000 8000 9000 15000 18000 20000 22000 25000
7 Motor Power kw 19 32.5 36.55 61.27 78.4 81.5 105 130
8 Outsize mm 4429*

2850*

3443

 4325*

2660*

5009

 5047*

3850*

5156

 6110*

3599*

7842

 7062*

5460*

8652

 8050*

6400*

8526

 9000*

5400*

8600

 9500*

6000*

11000

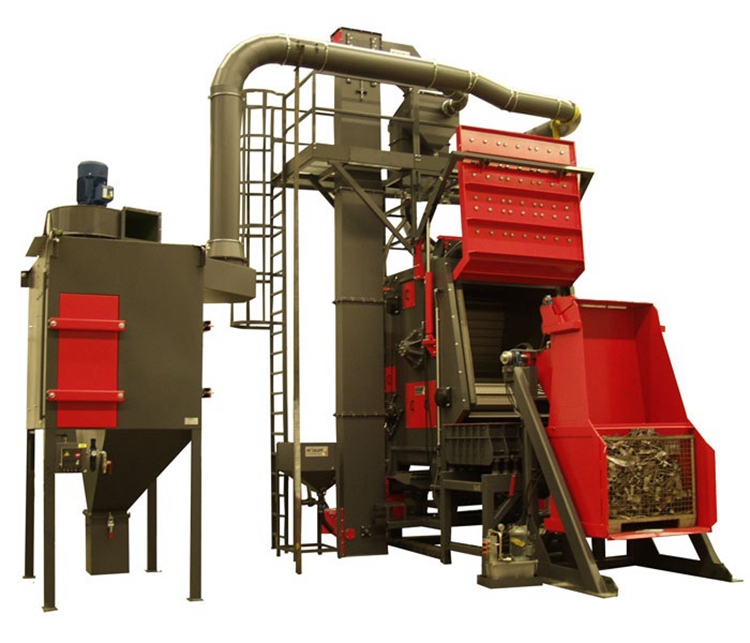

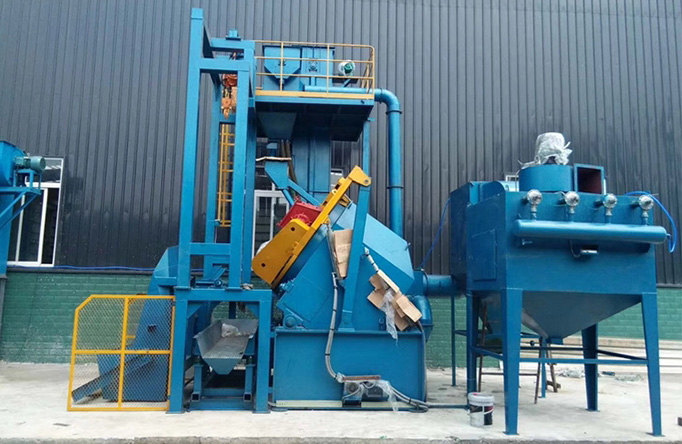

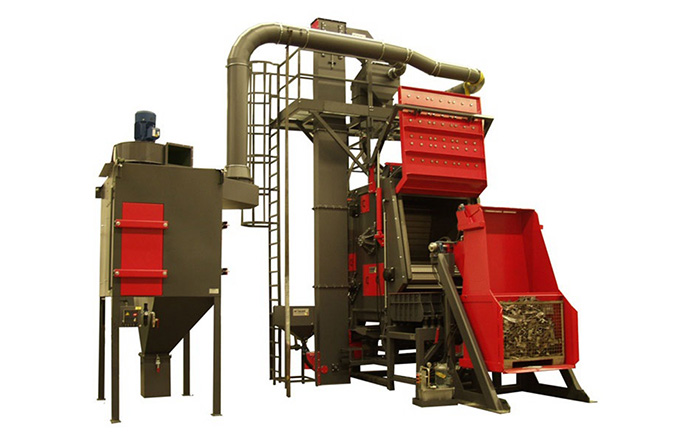

2.Crawler Shot Blasting Machine

Crawler Shot Blasting Machine,foundry machine



Crawler shot blasting machine is suitable for sand cleaning, rust removal, scale removal and surface strengthening of small and medium casting, forging, stamping parts, gears and springs in various industries.

QT3210C Adopt dumping type automatic feeding and crawler rotation automatic discharging, which greatly reduces the labor intensity of workers.

The new bag-type dust collector makes the dust emission concentration lower than the national emission standard and improves the working conditions



Item Spec Q326C QT3210C QR3210B
1 Dia(mm) 650 1000 1000
2 Turns(r/min) 3.6 3.5 3.5
3 Max. weight (kg) 15 30 30
4 Max.Load(kg) 200 600 600
5 Production Rate(kg/h) 800-1200 2500-3500 2000-3000
6 Crawler Material Rubber Rubber Rubber
7 Shot Blaster Motor Power (kw) 7.5 15 11
8 Shot Blast (kg/min) 130 250 200
9 Dust Removal Volume (m 3 /h) 2200 3500 3500
10 Total Power (kw) 11.95 24.3 15.07
11 Outsize (mm) 1310×1640×3566 3972×1960×4868 1868×1960×4668

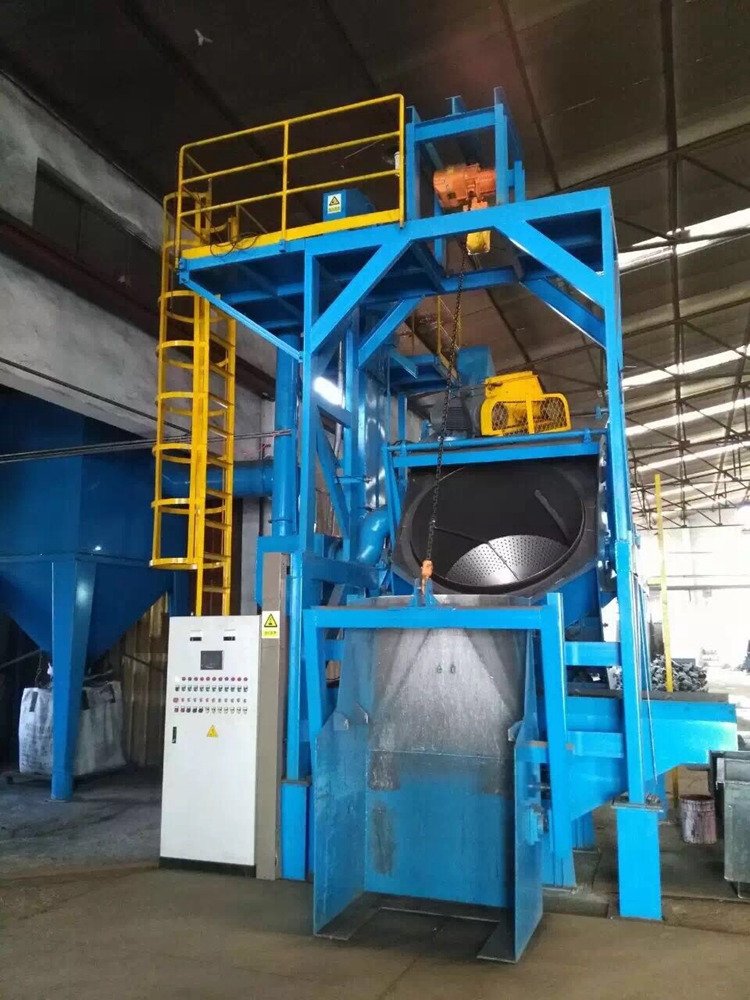

3.Drum Type Shot Blasting Machine

Drum Type Shot Blasting Machine,foundry machine



The Roller-type shot blasting machine uses a high-speed rotating impeller to throw the projectile into the casting or forging that is constantly turned in the Roller to remove the residual molding sand or scale on the surface. Even cleaning and high productivity.

Put the casting to be cleaned into the Roller, close the end cover, and then adjust the cleaning time, first move the half-nut pointer to the required scale position, and then start the machine in order.

After the Roller rotates, the inclined ribs on the protection plate continuously stir the casting, so that all surfaces are uniformly cleaned. The projectile flows into the interlayer wall through the lattice hole of the protective plate and passes through the spiral belt, and is sent to the box-shaped frame, and is sent to the upper end of the separator by the elevator, and the large core bone, burrs and other debris, small sand and dust , Projectiles, etc. are taken away by the airflow, and the complete projectiles flow into the shot blaster and continue to be used.



Item Spec Q3110A Q3110B Q3110C Q3113A Q3113F
1 Max Length of Workpiece(mm) 400 400 400 1100 1100
2 Max Weight of Workpiece(KG) 15 15 15 30 30
3 Load(KG) 300 320 320 350 350
4 Load Dia(mm) φ1000 φ1000 φ1000 φ1300 φ1300
5 Inner length of drum(mm) 800 800 800 1500 1500
6 Working Volume(mm) 0.1 .01 0.1 0.33 0.33
7 Shot Blaster Model Q3110 Q3024 Q3024 Q3024 Q3024
8 Shot Blast(KG/Min) 100 190 160 200 200
9 Shot Blasting Power(KW) 7.5 5.5 5.5 11 11
10 Lift Amount(KG) 160 160 160 200 200
11 Separation Amount(KG) 160 160 160 200 200
12 Total Ventilation m³/h 800 800 800 1400 1400
13 Total Power(KW) 9.35 7.35 7.35 14 14
14 Outsize of Machine 2078*2156

*1861

 2078*2156

*1861

 1982*1972

*2032.5

 2750*2800

*2250

 2750*2800

*2250

4.Trolley Shot Blasting Machine

The trolley shot blasting machine is to carry the workpiece into the chamber through the trolley, and then the trolley rotates the workpiece for shot blasting cleaning.

Mainly used for the cleaning of castings and other steel castings and cast irons, to remove the sticky sand, rust, oxide scale, dirt, etc. on the surface of the workpiece, to make the surface of the workpiece appear metallic, to eliminate the internal stress of the workpiece, and to improve the fatigue resistance of the workpiece Increase the adhesion of the paint film when the workpiece is sprayed, and finally achieve the purpose of improving the surface and internal quality of the workpiece.



Item Model Q365C Q3610 Q3620
1 Workpiece Size（mm） ￠2500*1300 2500*1500*280 4000*3000*700
2 Trolley Load（Kg） 5000 10000 20000
3 Shot Blast（Kg/min） 260*2 250*4 250*5
4 Lift Amount（T/h） 40 60 75
5 Separation Amount (T/h) 40 60 75
6 Dust Removal Volume（m/3h） 13200 24000 21000
7 Power（Kw） 39.2 188.45 185.25
8 Outsize（mm） 9000*4200*9290 14900*5500*8700 16900*6540*10020

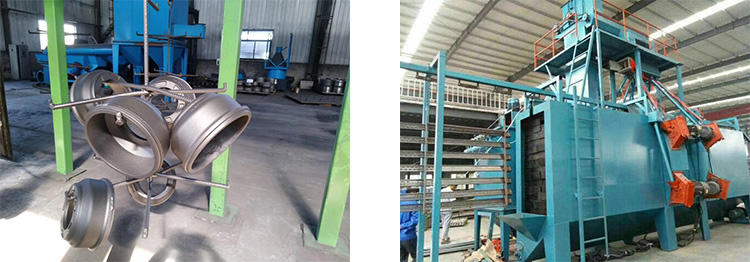

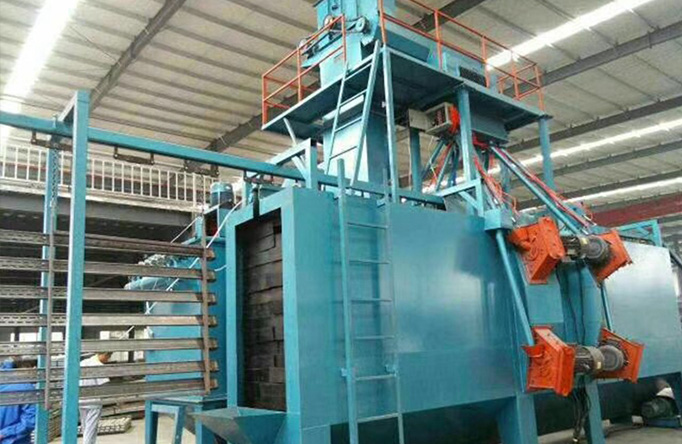

5.Catenary Shot Blasting Machine

Catenary Shot Blasting Machine,foundry machine



Catenary Stepping Shot Blasting Machine is mainly composed of shot blasting cleaning room, pneumatic door, shot blaster assembly, shot material circulation purification system, catenary conveyor system, workpiece rotation mechanism, dust removal system and electrical control system.

The plate welding parts of this equipment are processed by shot blasting to improve the anti-rust performance.

The specific working process is as follows：
Loading parts → Stepping → Shot blasting cleaning → Stepping → Unloading parts → Loading parts

The workpiece enters the shot blasting cleaning room under the lifting of the spreader. When it enters the shot blasting cleaning area, the catenary automatically stops, and the workpiece rotates under the drive of the rotation mechanism. At the same time, the shot blaster cleans the workpiece. The controller stops supplying pills,

The workpiece is transported out of the shot blasting cleaning chamber under the drive of the catenary conveyor system. At the same time, the workpieces hoisted by the next group of hooks are transported into the shot blasting cleaning chamber. Repeat the above process to perform high-efficiency shot blasting on the workpiece.



Item Spec Q483 Q485 Q4810
1 Production Rate(钩/h) 10 10 10
2 Crane Chain Running Speed（m/min） 2.44 7.34 2.44
3 Maximum Weight of Workpiece（Kg） 300 500 800
4 Hanging Distance (mm) 2560 2560 2560
5 Shot Blast（Kg/min） 250*2 250*3 360*6
6 Dust Removal Volume（m/3h） 6000 10000 25000
7 Workpiece Size（mm） 1000*1400 1200*1700 700*2400
8 Total Power（Kw） 38.75 58.43 85
9 Outsize（mm） 8450*5350*5003 12235*5410*9411 4500*5350*5003

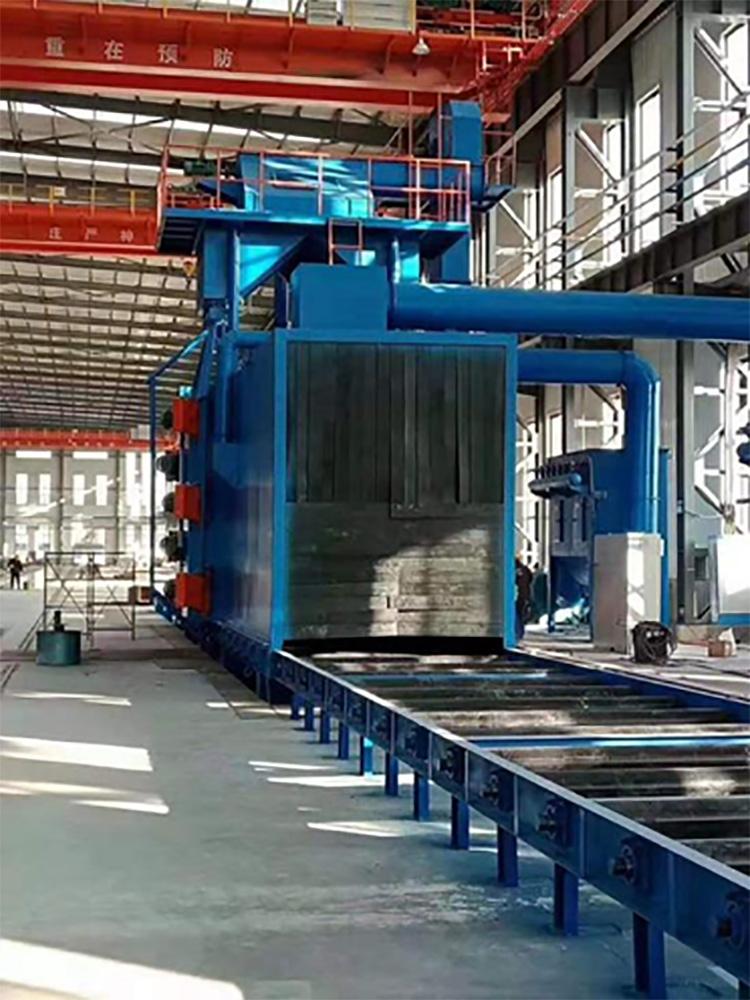

6.Roller Series Shot Blasting Machine

.Roller Series Shot Blasting Machine



Roller pass-through shot blasting machine is mainly composed of preheating, shot blasting, paint spray drying process. It is suitable for the surface derusting and painting process of steel plates, profiles and structural parts in ships, automobiles, locomotives, bridges, machinery and other industries.

This series belongs to roller-type shot blasting machine, which is mainly used for stress relief and surface derusting and cleaning of large I-shaped steel and other high-level steel structural parts in construction and bridge industries.
