Pneumatic Lining Building Machine

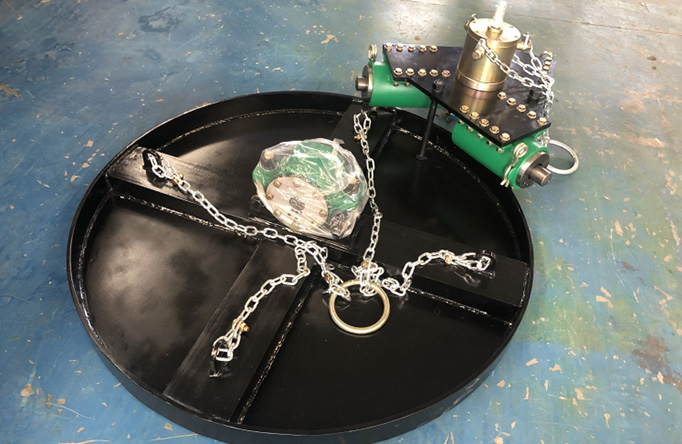

Pneumatic furnace building machine is composed of gas distributor, cylinder liner, gas hammer head, length adjustment rod and chain. It is mainly used for knotting the dry furnace lining material of intermediate frequency furnace. The inner wall principle makes the large and small particles of the lining material fill the gaps with each other, so as to achieve the tight effect of the lining material.1.QD-650 furnace bottom furnace building machine is suitable for 3-30 tons electric furnace bottom ramming with large vibration and adjustable vibration frequency; the ramming dense furnace is of good quality.

What is Pneumatic furnace building machine

Pneumatic furnace building machine is composed of gas distributor, cylinder liner, gas hammer head, length adjustment rod and chain. It is mainly used for knotting the dry furnace lining material of intermediate frequency furnace. The inner wall principle makes the large and small particles of the lining material fill the gaps with each other, so as to achieve the tight effect of the lining material.1.QD-650 furnace bottom furnace building machine is suitable for 3-30 tons electric furnace bottom ramming with large vibration and adjustable vibration frequency; the ramming dense furnace is of good quality.

Advantages of pneumatic furnace building machine:

  1. Automatic rotation, continuous hammering, saving time and effort;
  2. The ramming is uniform without particle segregation and the ramming density is high;
  3. Vibration force and vibration frequency are adjustable, strong adaptability;
  4. Quality assurance of furnace building;
  5. Improve the furnace working environment.

Applicable furnace capacity (t) crucible inner diameter D1 (mm)

1.0 ~ 2.5 diameter 500 ~ 700

~ 3.5 diameter 600 ~ 840

~ 5.0 Diameter 700 ~ 940

~ 6.0 Diameter 800 ~ 1040

~ 8.0 diameter 900 ~ 1140

~ 12.0 diameter 1000 ~ 1240

~ 15.0 Diameter 1100 ~ 1340

~ 18.0 diameter 1200 ~ 1440

~ 25.0 Diameter 1300 ~ 1440

~ 30.0 diameter 1400 ~ 1540

The type we have

HXZLJ-S

Number of air hammer heads: Two
Steel plate mould: Can be replaced
Vibration force: 1600N
Vibration frequency: 56Hz
Gas consumption: 13L/S
Air pressure requirements: 0.6Mpa
Scope of application: 0.5-1T



HXZLJ-M

Number of air hammer heads: Two
Steel plate mould: Can be replaced
Vibration force: 1700N
Vibration frequency: 56Hz
Gas consumption: 13L/S
Air pressure requirements: 0.6Mpa
Scope of application: 1-3T



HXZLJ-X

Number of air hammer heads: Three
Steel plate mould: Can be replaced
Vibration force: 1700N
Vibration frequency: 56Hz
Gas consumption: 13L/S
Air pressure requirements: 0.6Mpa
Scope of application: 1-3T
