Horizontal Molding Machine Main Parameter

Item Unit Z143 Z145WB Z145W Z146W Z146W-B Z148CW Z148E Z1410
Max. Size mm 400x400x100 500x400x180 500x450x200 600x500x200 600x500x250 800x630x320 800x700x320 1000×800×350
Working Table Size mm 560×420 560×465 610×515 700×555 700×555 900×730 1000×800 1400×1030
Compressed Air Pressure Mpa 0.55 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Pressure Strength KN 40 42 63 70 83 120 180 200
Shock Load KN 2.5 2.6 3 3 4.6 5.5 / 6
Compaction Stroke mm 90 120 148 150 150 195 200 200
Mold Stroke mm 150 150 200 200 200 320 320 350

Fully Automatic Horizontal Parting Flaskless Molding Machine Main Parameter

Type JZ3545 JZ4555 JZ5565 JZ6575 JZ7585 JZ100100
Size of Sandbox（mm）

（Length✖Width）

 350✖450 450✖550 550✖650 650✖750 750✖850 1000✖1000
Sand Box Height （Up）120-200 （Up）120-200 （Up）150-200 （Up）150-200 （Up）170-220 （Up）200-250
（Down）120-200 （Down）120-200 （Down）150-200 （Down）150-200 （Down）170-220 （下）200-250
Control adjustment
Moulding Mode Air shot sand+

extrusion

 Air shot sand+

extrusion

 Air shot sand+

extrusion

 Air shot sand+

extrusion

 Air shot sand+

extrusion

 Air shot sand+

extrusion
Moldding Speed 30sec/mold 30sec/mold 30sec/mold 35sec/mold 35sec/mold 45sec/mold
Drive Method Air&pneumate&

hydraulic device

 Air&pneumate&

hydraulic device

 Air&pneumate&

hydraulic device

 Air&pneumate&

hydraulic device

 Air&pneumate&hydraulic device Air&pneumate&

hydraulic device
Drive method
Input Voltage AC220~380V AC220~380V AC220~380V AC220~380V AC220~380V AC220~380V
Motor Power 18.5KW 18.5KW 22KW 30KW 30KW 45KW
Control Mode PLC PLC PLC PLC PLC PLC
Pneumatic Working

Pressure

 0.55~0.75 Mpa 0.55~0.75 Mpa 0.55~0.75 Mpa 0.55~0.75 Mpa 0.55~0.75 Mpa 0.55~0.75 Mpa
Mould Type Aluminium

Doubule Panel

 Aluminium

Doubule

Panel

 Aluminium

Doubule Panel

 Aluminium

Doubule Panel

 Aluminium

Doubule Panel

 Aluminium

Doubule Panel
Thickness of template 20-25mm 20-25mm 20-25mm 25-30mm 25-30mm 25-30mm
Pouring And Riser’

Diameter

 Φ20、Φ25、Φ30、

Φ35

 Φ20、Φ25、

Φ30、 Φ35

 Φ20、Φ25、

Φ30、Φ35

 Φ20、Φ25、Φ30、Φ35 Φ20、Φ25、

Φ30、Φ35

 Φ20、Φ25、

Φ30、Φ35

Introduction

The machine is suitable for large-scale production of castings with deep concavity and difficult mold opening, such as mechanical parts for motor housing sewing machine.

The automatic top box molding machine has the characteristics of scientific and reasonable structure, simple operation, convenient maintenance and good mold quality.

The machine will perform shaking, compression, mold opening, etc. all mechanically. (The mold opening mechanism uses cylinders, connecting rods, synchronous shafts, etc. to achieve synchronized mold opening.)

Horizontal Molding Machine Advantages

1) Simple operation, reliable quality, energy saving and environmental protection

2) Precision casting, generous appearance, durable

Horizontal Molding Machine

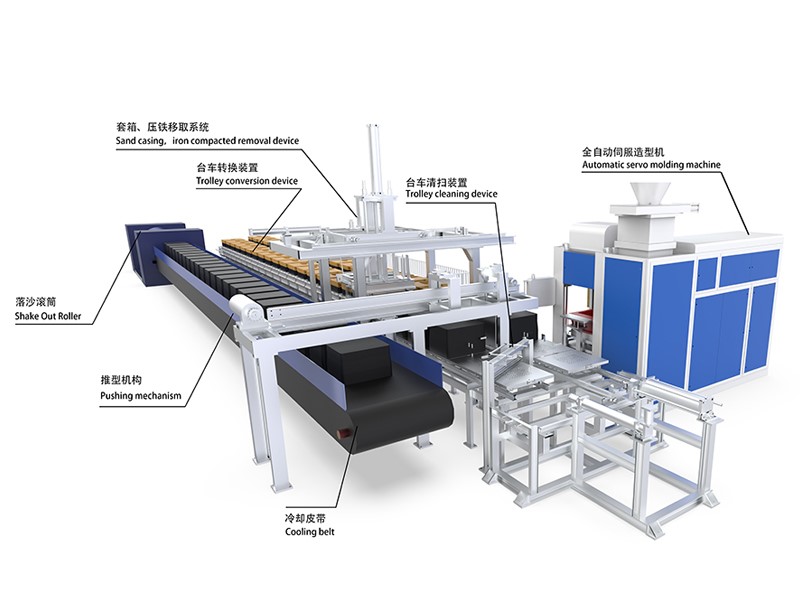

Fully Automatic Horizontal Parting Flaskless Molding Machine Advantage

1) Improve production efficiency and save human resources

2) Efficient and stable, 24H continuous operation

3).The height of sand mold is adjustable, saving sand

4) has a safety grating to ensure safe use

5) Built-in thousands of memory functions, no need to adjust the machine when changing the mold

6) Low equipment failure rate and self-diagnosis

7) Simple operation, no professional technicians needed

8).Servo hydraulic closed-loop control, low energy consumption

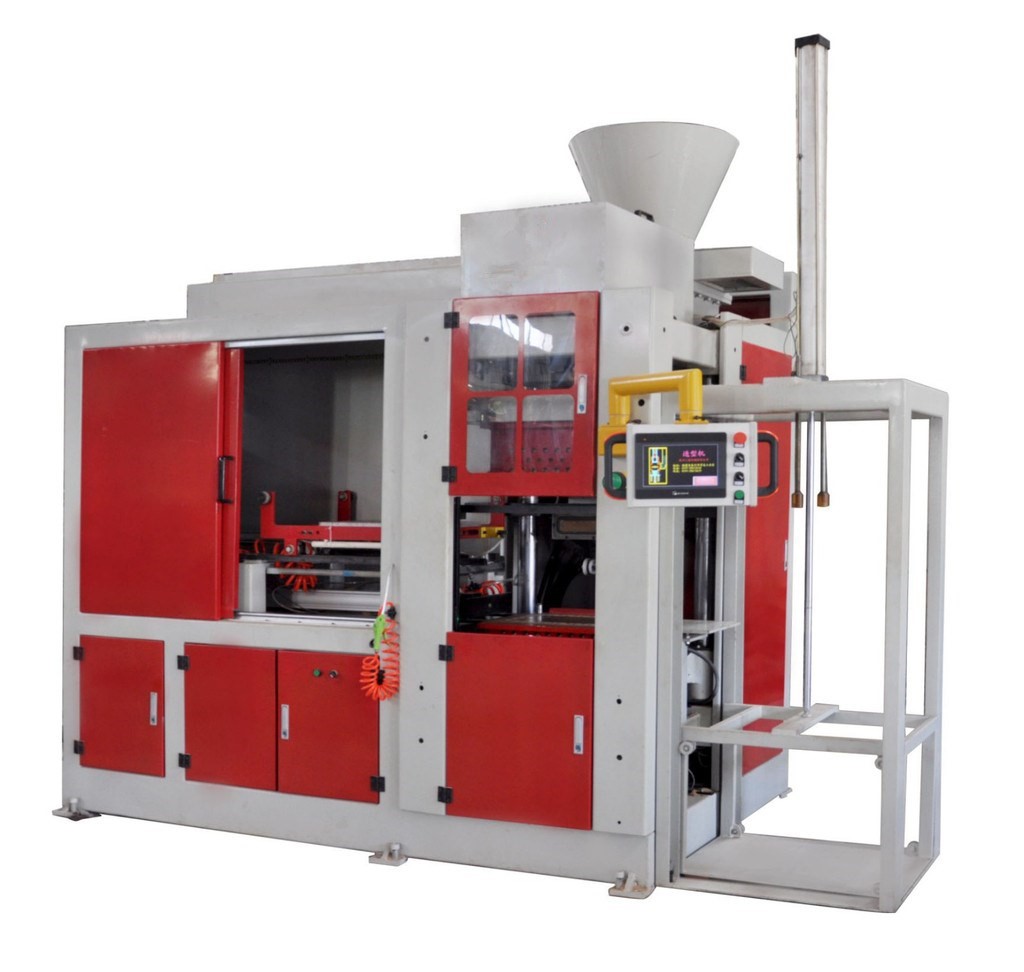

Fully Automatic Horizontal Parting Flaskless Molding Machine
