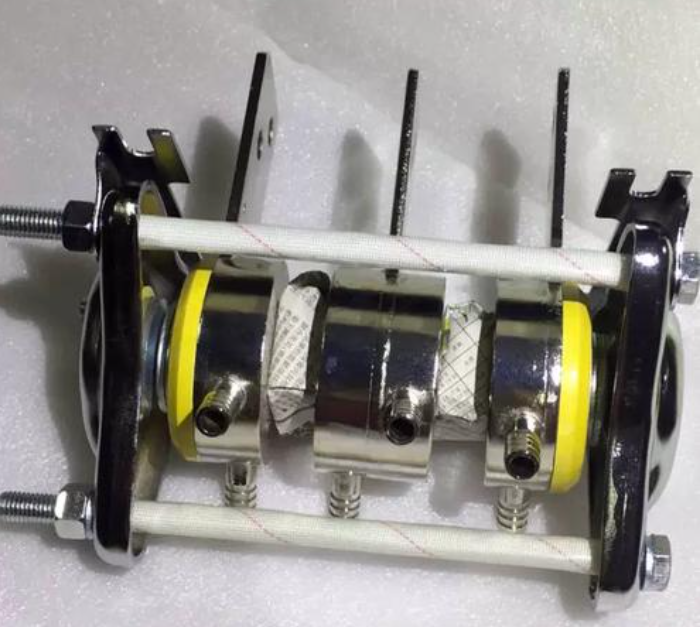

MF furnace thyristor water jacket
1. Concept and function of thyristor water jacket of medium frequency furnace
The medium frequency furnace is a high-tech heat treatment equipment. It introduces high-frequency current into the smelting material through the principle of induction electromagnetic force heating to achieve operations such as heating and melting of the material. During the heating process of the medium frequency furnace, due to the extremely high temperature in the furnace, in order to ensure the safe operation of the furnace body and extend the service life of the smelting furnace, the furnace body must be water-cooled. The water jacket of the thyristor of the medium frequency furnace is one of the important components for water cooling of the medium frequency furnace.
The thyristor water jacket plays a very important role in the medium frequency furnace. It is not only a device for water cooling the medium frequency furnace, but also an important component for controlling the temperature of the medium frequency furnace and protecting the furnace body. When the temperature of the medium frequency furnace rises, the thyristor water jacket absorbs water to dissipate heat and cool the furnace body so that it will not be damaged or damaged due to high temperature.
2. Structure and types of water jackets
The thyristor water jacket usually consists of three parts: shell, water inlet and expansion mouth. The shell can be divided into two parts: the inner shell and the outer shell. The two parts are separated by heat-insulating materials to ensure that the outer shell is not affected by heat, thereby ensuring the stable operation of the furnace body. The water inlet is the channel for water to enter the water jacket, and the expansion mouth is the channel for water to leave the water jacket.
According to the material classification, the thyristor water jacket can be divided into copper, stainless steel, fiberglass and other types. Among them, the copper water jacket has good thermal conductivity and can quickly transfer heat to the water. The stainless steel water jacket has the characteristics of strong corrosion resistance and can be used for the processing of etching materials. The fiberglass water jacket has the advantages of light structure and low cost, and is widely used in various types of medium frequency furnaces.
In short, the thyristor water jacket of the medium frequency furnace is an important cooling equipment in the medium frequency furnace, which can effectively control the temperature and protect the medium frequency furnace. During the use and maintenance of the medium frequency furnace, the water jacket must be regularly inspected and maintained to ensure the normal operation of the medium frequency furnace and extend its service life.
